Shaft Inspection Camera STV-3: Quick View MESSEN NORD GmbH

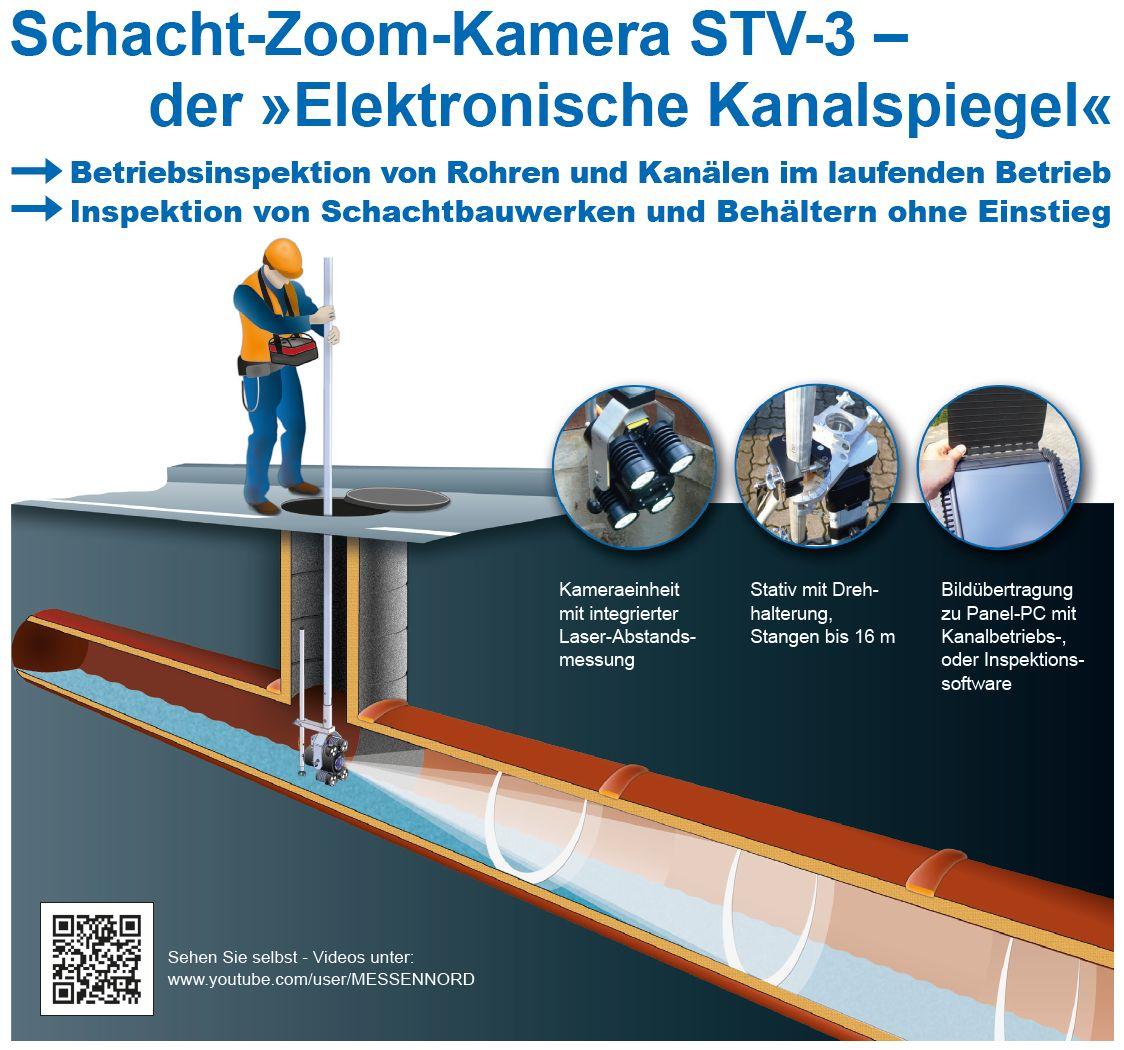

Shaft Inspection Camera STV-3: Quick View Manhole camera STV-3: Electronic sewer inspection with integrated distance measurement Request Catalogue   This inspection tool, developt and presented from MESSEN NORD first at IFAT 2010 provides the inspection of waste water sewers and shafts / manholes without the need of man entering. To increase the performance and to reduce the costs of sewer management are the aims of its usage. System description: Remote controlled manhole zoom camera (Man hole and pipeline survey camera, Pole Camera, Electronic Sewer Mirror) with QuickLock rod system 8-16 m length, 4 LED high-powered lights and control panel for the evaluation and documentation of the state of pipelines, shafts, separators and collectors (-> Electronic channel imaging, video channel imaging) The camera unit has a spring loaded, adjustable support to stay in the centre of pipes DN 200 - 800 and is complete with spotlights and laser distance sensors, both horizontal and vertical tilt. Images and videos can be saved onto an integrated SD card or via USB 2.0 by pressing a button during the inspection, or transferred to a connected Tablet PC or Notebook and reports generated using the specially developed inspection software SCHACHT-INSPECTOR to DIN EN 13508-2 standards or included in the general inspection report according to EN 858 / DIN 1999-100 / DIN 4040-100. The standard video ports on the operating panel allow the continued use and connection of your current video inspection system. Manhole inspection software SCHACHT-INSPECTOR in line with DIN EN 13508-2 with integrated shaft development and panorama picture creation, ISYBAU / XML interface for inspection data export and inspection report generation. Supplied with the options: Tripod, telescopic rods 8-16 m, battery pack, car power adapter and tablet PC with inspection software The integrated laser distance sensor permits measurement of the shaft and containment structures examined horizontally and vertically without the necessity to entering yourself.   One tool, two uses: 1. Manhole camera Inspection / measurement / documentation of the condition of manholes and tanks (oil separators, grease traps, collection tanks) without need for entry (shaft inspection / container inspection) 2. Video drain and pipe inspection Assessment and documentation of the operating condition of pipes and ducts without the need to enter to permit the so-called "tailored cleaning" by drain washing / high pressure cleaning technique (electronic drain inspection, video drain inspection, deposit build-up examination), Application data sheet (EN), Quick View Data Sheet: Shaft Inspection Camera STV-3, Example report acc. to DIN 13508-2, Inspection caméra de typ zoomage (FR), Paper by GAMM-BUD sp. z o.o., Poland Application data sheet (HU)   Inspection videos at YouTube: Plastics pipe DN 300 shaft to shaft, Stadt Herford General sewer with spiral conveyor Inspection of general serwer in operation Shaft / Manhole inspection: Application video Inspection video of an high pressure sewer cleaning   Documents: Camera and software documentation (German) Shaft inspection report (German) STV-Advertising (Italian)   Abstracts of an article, published by BOKU, Austria 2013: 100,000 kilometers of actively used public sewer pipes in Austria, making effective sewer cleaning one of the most essential responsibilities of sewerage Providers. Unfortunately, given the precarious financial situations faced by many eitles and communities, sewer cleaning also means a considerable financial bürden. As a result, many of them have had to extend their maintenance intervals or postpone much-needed cleaning procedures. In response, ÖWAV Rule Sheet 22 (draft Version from September II, 2012) recommends taking a proactive approach to the Operation of sewer facilities: "Forward-looking management and maintenance planning help to ensure facilities' smooth Operation and reliable waste removal, while also minimizing maintenance costs and negative effects on the envlronment." However, the prerequisite for this forward-looking management is a precise knowledge of the sewer network in question. A fast and simple method for arriving at an overview of a sewer network, how clean or dirty it is, and the thickness of accumulated deposits in comparison to the cross-section is e.g. inspecting it with a manhole camera (electronic sewer inspection). A case study of efforts implemented in the city of Salzburg show the savings potential offered by using forward-looking management in connection with sewer cleaning. Quick View: The remote controlled zoom camera STV-3 with LED-high performance cold spotlights and control panel serves the assessment and documentation of the status of sewers, pipes, shafts, manholes, vessels, inspection points, separators and collecting tanks without entering. Images and videos can be stored at the integrated SD-memory stick or transmitted via USB to a connected PC/notebook and inserted into inspection reports according to DIN EN 13508-2, DIN 1999-100 or DIN 4040-100. The integrated measuring laser with a range of 10 m allows measuring the dimensions of tanks. The pole camera is guided either manually by a telescopical pole system or via an optional support. In addition, the camera suspension allows horizontal rotation to image the shaft channel. The wide-range zoom objective and special lighting characteristics allows a zoom in for assessing the cleanness of the pipelines and sewers to provide a “Cleaning on demand”.   Kontaktieren Sie uns gern, wenn Sie Interesse an unseren Produkten haben. Link zur Homepage mit weiteren Informationen zu unseren Produkten und dem Kontaktformular:  http://www.messen-nord.de/products/drain-testing-and-inspection.html?L=1#c215   MESSEN NORD GmbH Zum Forsthof 2 18198 Stäbelow b. Rostock Tel.   +49 (38207) 656-0 Fax   +49 (38207) 656-66 Ansprechpartner: Dipl.-Ing. Steffen Machka ( persönliche E-Mail schreiben ) Tel.    +49 (38207) 656-16 Mobil  +49 (175) 4152354
