Informationen über Architectural Woven Metal Wire Mesh Facades-Barrette WeaveCable Mesh System

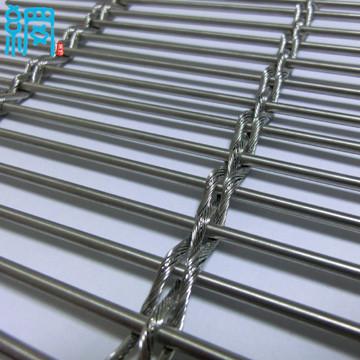

Architectural Woven Metal Wire Mesh Facades-Barrette WeaveCable Mesh System
web wire mesh Co.,Ltd
|
architectural wire mesh is produced by special weaving machine with single or multiple cable wire (warp wire ) and straight rod (weft wire), the cable wire create flexibility, while the rod provide stability for the metal mesh. The wire mesh is widely used in large facades and wall cladding installations. WEB WIRE MESH can offer this architectural wire mesh in the standard specifications, the opening sizes range from 2 mm x 1 mm to 100 mm x 10 mm, while cable diameters range from 0.45 mm to 3 mm, and rod diameter is between 0.5 and 4 mm, the manufactured width is up to 8 m. The wire mesh is commonly constructed with materials of stainless steel wires. Cable Diameter Cable Pitch mm Rod Diameter mm Rod Pitch mm Weight kg/m 3 0.75mmX4 26.4 1.5 3 5.3 1mmX4 36 2 4 7.0 2mmX4 50 3 6 11.56 3mmX3 40 3 11 9.5 2.75mmX2 40 4 14.5 9.41 2mmX3 80 3 10 6.6 2mmX3 80 3 6.5 9.74 1.6mmX1 3.2 1.2 6 5.0 2mmX1 3.1 1.2 5 10.0 2.5mmX1 5 2 6 12.2 2.5mmX1 6 2 8 9.8 0.45mmX3 3.5 0.5 1.6 2.1 |
